    Customized 84/140L Argonite IG55 Inert Gas Fire Suppression System Cylinder

    Ask Lasest Price
    Brand Name : Air Giant
    Model Number : DYMP80/20, DYMP140/20, DYMP80/30, DYMP140/30
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C , D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability : 300 sets per week
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Customized 84/140L Argonite IG55 Inert Gas Fire Suppression System Cylinder

    Customized 84/140L Argonite IG55 Inert Gas Fire Suppression System Cylinder


    Description


    Naturally occurring Gases often used as blends, these blends are used to reduce oxygen to below 15% and above 12%. Oxygen levels below 15% will not allow a fire to burn as the oxygen is simply not there to fuel the fire. Levels of Oxygen between 12% and 15% is adequate to sustain human life. Oxygen levels between 12% and 10% will show visible signs of effects asphyxiation Oxygen levels below 10% are extremely dangerous.

    This type of fire suppression is considered a green option and does have many advantages used in the right application.

    IG55 fire suppression agent is a blend of 50% Argon & 50% Blend of Nitrogen. The fire suppression gas is blended to offer better buoyancy for the fire suppression agent keeping the fire suppression gas at higher levels in the protected enclosure for longer!


    Parameters


    No.SpecificationIG55(50% nitrogen;50% argon)
    1Capacity80Ltr140ltr
    2Working Pressure20MPa30MPa20MPa30MPa
    3Device ModelQMH20/80QMH30/80QMH20/140QMH30/140
    4Filling Capacity of Gas22.32kg33.48kg42kg58.2kg
    5Outside Diameter of CylinderΦ279mmΦ267mmΦ406mmΦ356mm
    6Height of Cylinder1710mm1870mm1460mm1925mm
    7Filling Rate0.299kg/L0.415kg/L0.300kg/L0.201kg/L
    8Spraying Time≤120s
    9PowerDC24V/1.6A
    10Nitrogen Pressure of Driving Device6.0±1.0MPa(20℃)
    11Condition of Reserving Room for Containertemperature: 0~50℃

    Features and benefits


    1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.

    2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.

    3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.

    4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.

    5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.

    6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.

    7. After discharging, the system can be put into operation quickly with simple disassembly and secondary filling witn agent without replacing any parts.

    8. It reduces the area of opening hole of gas pressure relief port, directly reduces the input cost of safety pressure relief device, and installs and arranges safety buckle become more simply.

    9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.

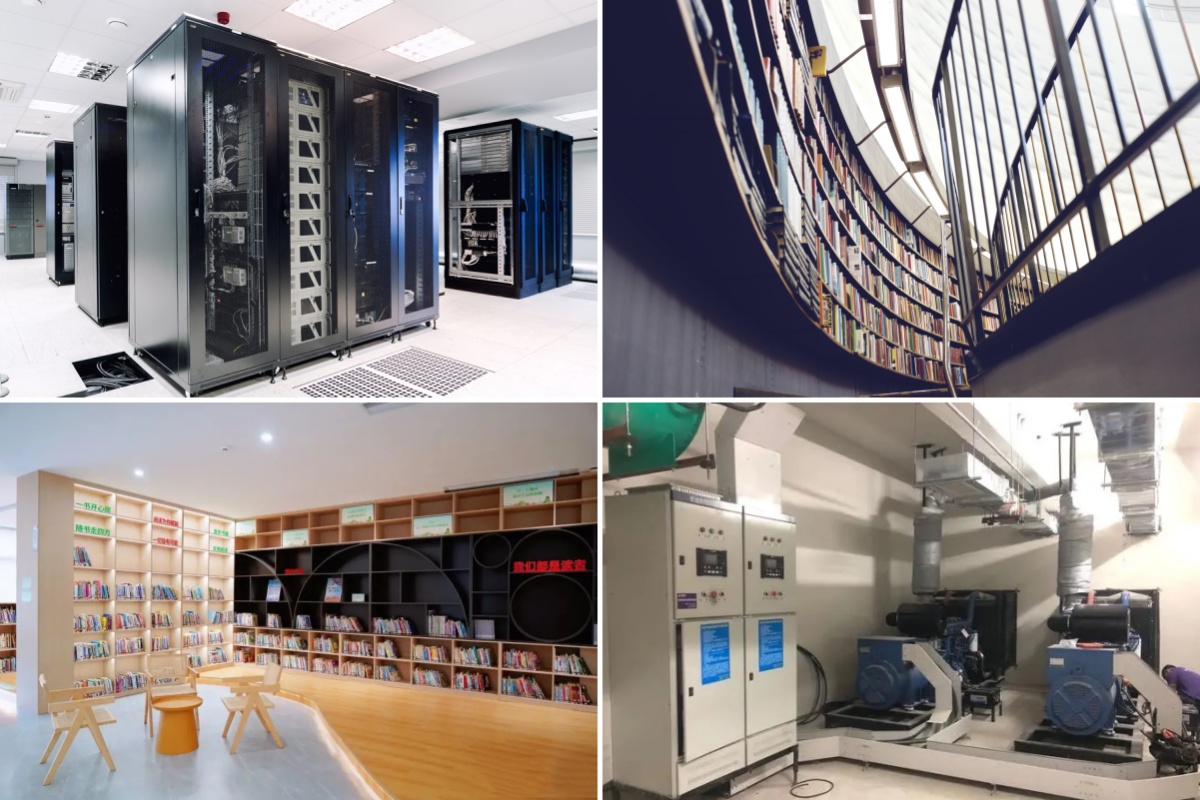

    Application

    1. Museums / Archives
    2. Libraries / Art Galleries
    3. Film Storage / Digital Archives
    4. Data Centers / Server Rooms
    5. Substations / Electrical Rooms
    6. Telecommunication Base Stations / Network Rooms
    7. Precision Instrument Workshops
    8. Petrochemical Control Rooms
    9. Automotive Paint Booths
    10. Aircraft Hangars
    11. Ship Engine Rooms
    12. High-Speed Rail Control Centers
    13. Medical Facilities
    14. Financial Data Centers
    15. Emergency Command Centers


    Package


    We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



    Company Introduction


    Guangdong Air Giant Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Nansha District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.


    Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
