    IG100 Nitrogen Inert Gas System Fire Extinguisher 1770mm

    Ask Lasest Price
    Brand Name : Air Giant
    Model Number : QMD20/80, QMD30/80
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C , D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability : 300 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

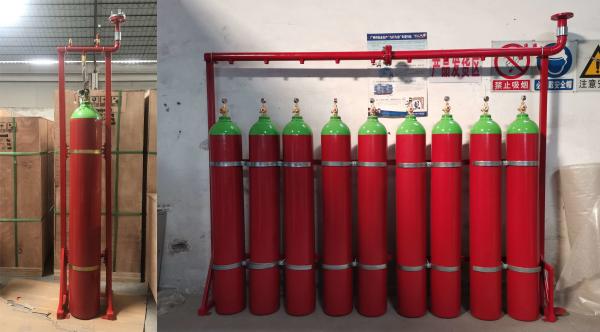

    IG100 Nitrogen Inert Gas System Fire Extinguisher 1770mm

    Inert Gas Nitrogen IG100 Fire Extinguishing System Without Pollution For Battery Room


    IG100 characteristics: protecting the ecological environment of the earth, safety and hygiene do not interfere with vision, no stain caused by extinguishing agent, durable of fire fighting effect. Nitrogen can be separated from the air and produced from a wide range of sources at a cheap charge.


    Parameters


    No.SpecificationTechnical Parameter
    1Working Pressure20MPa30MPa
    2Device ModelQMD20/80QMD30/80
    3Capacity80Ltr80Ltr
    4Filling Capacity of Gas20kg24.68kg
    5Outside Diameter of CylinderΦ267mmΦ267mm
    6Height of Cylinder1910mm1770mm
    7Spraying Time≤120s≤120s
    8Max Filling Rate0.25kg/L0.309kg/L
    9PowerDC24V/1.6ADC24V/1.6A
    10Nitrogen Pressure of Driving Device6.0±1.0MPa(20℃)6.0±1.0MPa(20℃)
    11Condition of Reserving Room for Containertemperature: 0~50℃temperature: 0~50℃
    12Max Working Pressure23.2MPa36.6MPa
    13Min Working Pressure18MPa27MPa

    Application


    The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:


    - Telecommunications and data processing

    - Switch gear rooms

    - Military applications and cell sites

    - High-tech medical application

    - Computer rooms

    - Telecommunication centers

    - Records and data archives

    - Testing/imaging equipment

    - Reference material

    - Chemical laboratories


    Advantages


    • Suitable for occupied areas
    • Electrically non – conductive
    • Chemically inert
    • Colourless, odourless and flavourless
    • No residue to clean up after the discharge
    • Zero Ozone Depletion Potential (ODP)
    • No greenhouse effect
    • No global warming iMPact
    • No decomposition products
    • No fog and no loss of post-discharge visibility
    • Non corrosive/toxic
    • Stored as a gas
    • Excellent post-discharge visibility
    • Very low refill cost.
    • Easy to obtain anywhere in the world

    Packages

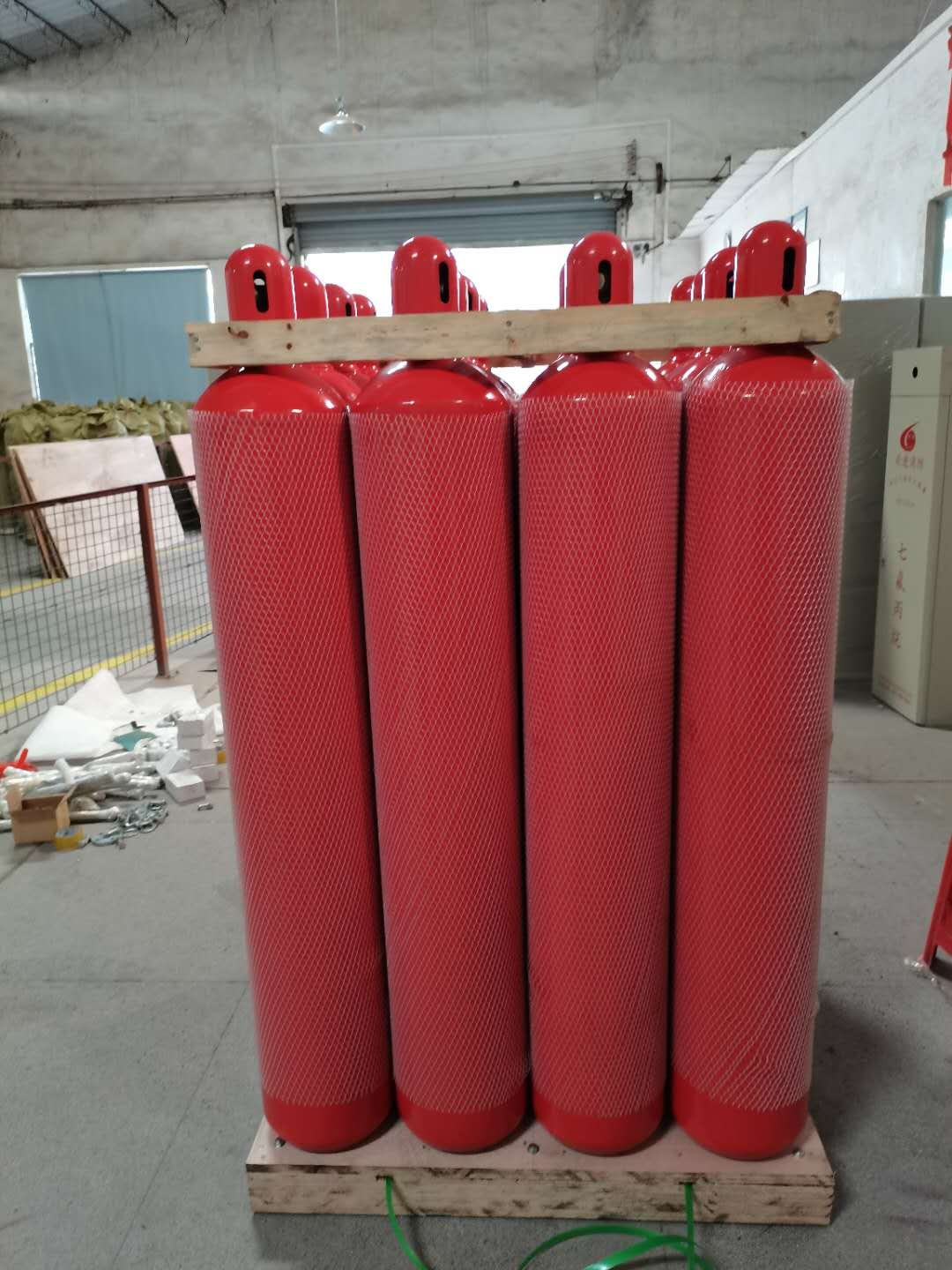

    We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
