    Electrical Automatic IG 100 Fire Suppression System Inergen Fire Extinguisher 1910mm

    Ask Lasest Price
    Brand Name : Air Giant
    Model Number : QMD20/80, QMD30/80
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C , D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability : 300 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Electrical Automatic IG 100 Fire Suppression System Inergen Fire Extinguisher 1910mm

    High-Quality Inert Gas Nitrogen IG100 Fire Extinguishing System Without Pollution


    Inert gas fire extinguishing systems are the safe, natural way to extinguish a fire. Because of its unique patented valve assembly, the agent enters the protected zone within the industry required 60 seconds but at a steady flow rate — preventing destructive turbulence from occurring. This constant flow rate allows for the use of small-diameter, low pressure (and less expensive) piping from the inert gas container all the way to the nozzle. And, the necessary venting area is much smaller, which can reduce installation costs by as much as 60% on venting hardware.


    Parameters


    No.SpecificationTechnical Parameter
    1Working Pressure20MPa30MPa
    2Device ModelQMD20/80QMD30/80
    3Capacity80Ltr80Ltr
    4Filling Capacity of Gas20kg24.68kg
    5Outside Diameter of CylinderΦ267mmΦ267mm
    6Height of Cylinder1910mm1770mm
    7Spraying Time≤120s≤120s
    8Max Filling Rate0.25kg/L0.309kg/L
    9PowerDC24V/1.6ADC24V/1.6A
    10Nitrogen Pressure of Driving Device6.0±1.0MPa(20℃)6.0±1.0MPa(20℃)
    11Condition of Reserving Room for Containertemperature: 0~50℃temperature: 0~50℃
    12Max Working Pressure23.2MPa36.6MPa
    13Min Working Pressure18MPa27MPa

    Components


    Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.


    Application


    • Computer room, communication room, power distribution room, library, archives,

    Museum, etc.


    • Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas

    source before extinguishing occur, etc.


    Advantages


    1. After spraying, the system does not need to replace any parts, simple dis-assembly and secondary filling, the system can be quickly put into operation.
    2. The opening area of the pressure-relief device is reduced. the input cost of the pressure-relief device is directly reduced, and the safety buckle is installed and arranged more simply.
    3. Nitrogen fire extinguishing system(IG-100) can be widely used to make rapid response to fire, protect staffs on sites, sudden fire, important places sensitive to chemical reaction and effectively protect the safety of personnel and property.

    Packages

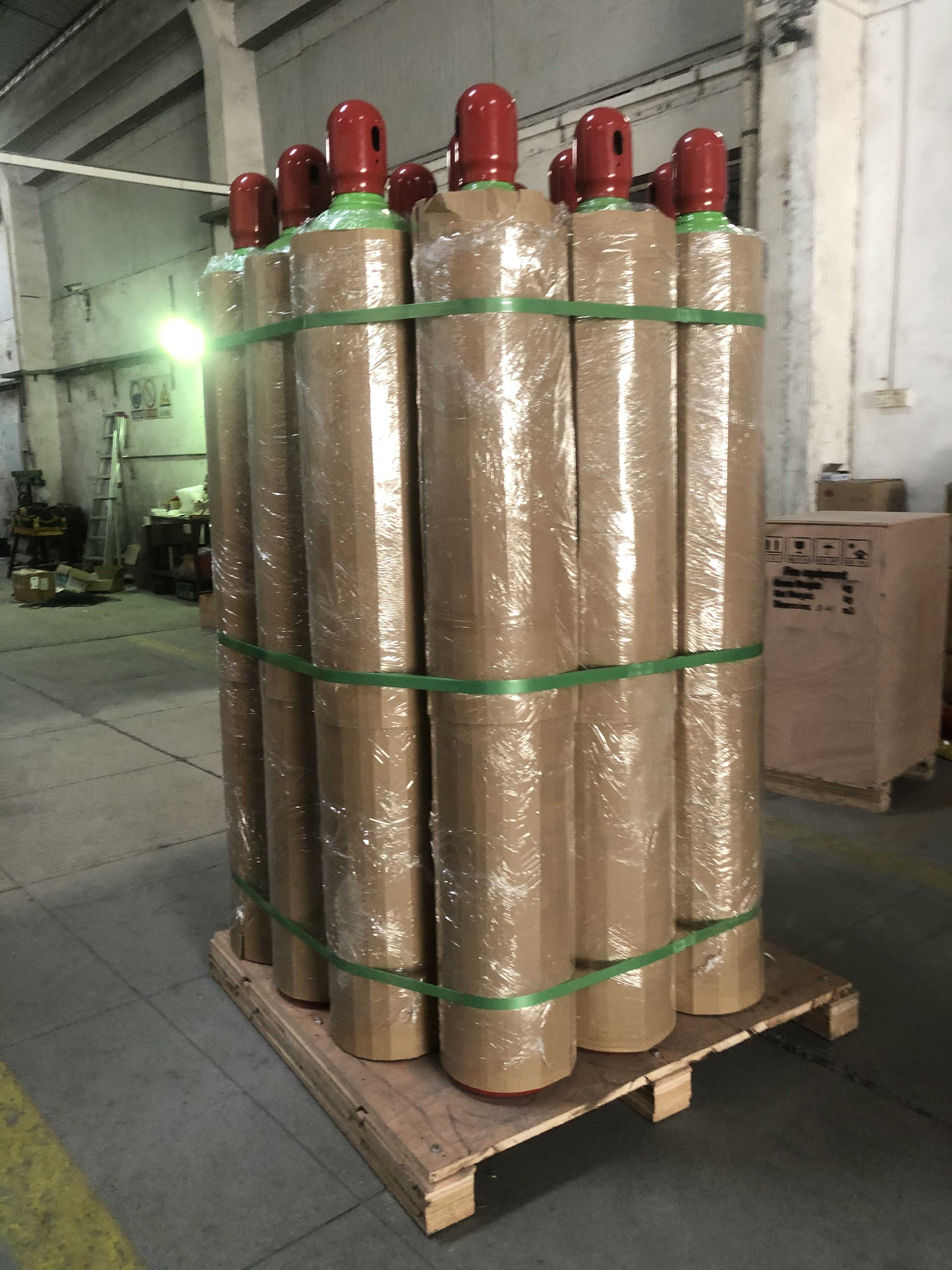

    We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
