The extinguishing principle of inert gases focuses on reducing
oxygen concentration in the affected zone.
When a fire starts, IG-55 rapidly penetrates the area and reduces
the oxygen level percentage from the usual level of 21% to a limit
that fluctuates between 13% and 11%, the amount sufficient for
combustion to stop and to be safe for the people in the room.
Thanks to the stratification of the gases (due to their density,
argon rises and nitrogen falls) protection is achieved throughout
the space, regardless of how high the ceiling is.
During its discharge, there is excellent visibility and, since it
leaves no residue, there are no destructive effects to the
equipment, which will continue functioning normally and, of course,
there will be nothing to clean up.
• Storage cylinder group, storage cylinder group frame, nitrogen
driving device, nitrogen driving device frame,
the cylinder valve, liquid flow check valve, air flow check valve,
electromagnetic starter, gas conveying pipeline, collecting pipe,
choice valve, three links, reducer tee, reduceing elbow, flange,
safety valve, pressure transmitter, pipe, nozzle, chemicals, fire
detector, fire controller, sound and light alarm, alarm bell, gas
light, emergency start / stop button, etc.
Application
Computer room, telecommunication room, transformer room, electrical
switch and distribution room, generator room, leaching tank, drying
equipment, paint spraying booth, electrical instrument room,
control center, library, archives, treasure trove of cultural
relics, etc.
Advantages
1. Compared with the traditional 15MPa system, the 30MPa system
saves 25%-50% of the quantity of extinguisher cylinders.
2. It effectively reduces the floor area between the cylinders and
improves the overall use value and utilization rate of the
building.
3. Constant low pressure release of 6MPa reduces the cost of piping
and components for the whole system.
4. The constant release pressure of 6MPa provides a more durable
and effective pressure, with a transmission distance of up to 200
meters.
5. Whole system release by low pressure, it will be less impact on
site personnel, equipment and building structure, and it will be
more safety.
6. The external constant pressure-relief device only bears the
pressure when the system is discharged, which is convenient for
disassembly and maintenance, and effectively reduces the system
failure rate.
7. After discharging, the system can be put into operation quickly
with simple disassembly and secondary filling witn agent without
replacing any parts.
8. It reduces the area of opening hole of gas pressure relief port,
directly reduces the input cost of safety pressure relief device,
and installs and arranges safety buckle become more simply.
9. IG55 fire extinguishing system can be widely used in important
places that need rapid response to fire. There are workers, sudden
fires and sensitive to chemical reactions on the site of the
protection zone, the fire extinguishing system can effectively
protect the safety of personnel and property.
Packages

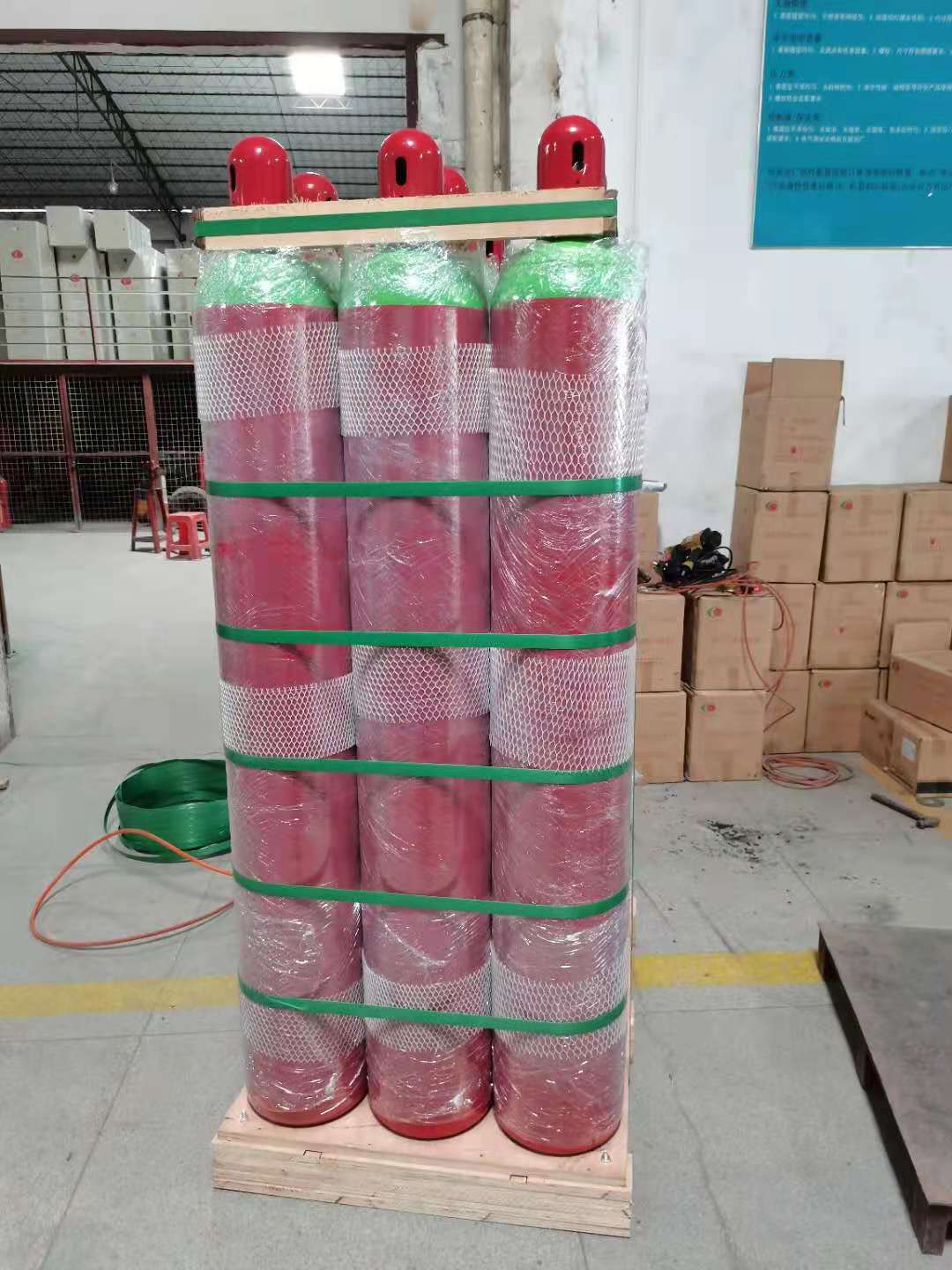

We always pack it with polyfoam first and then put it into a wooden
case. Sometimes, in order to meet with customers or the safety
requirement, we will make a pallet for the goods.
